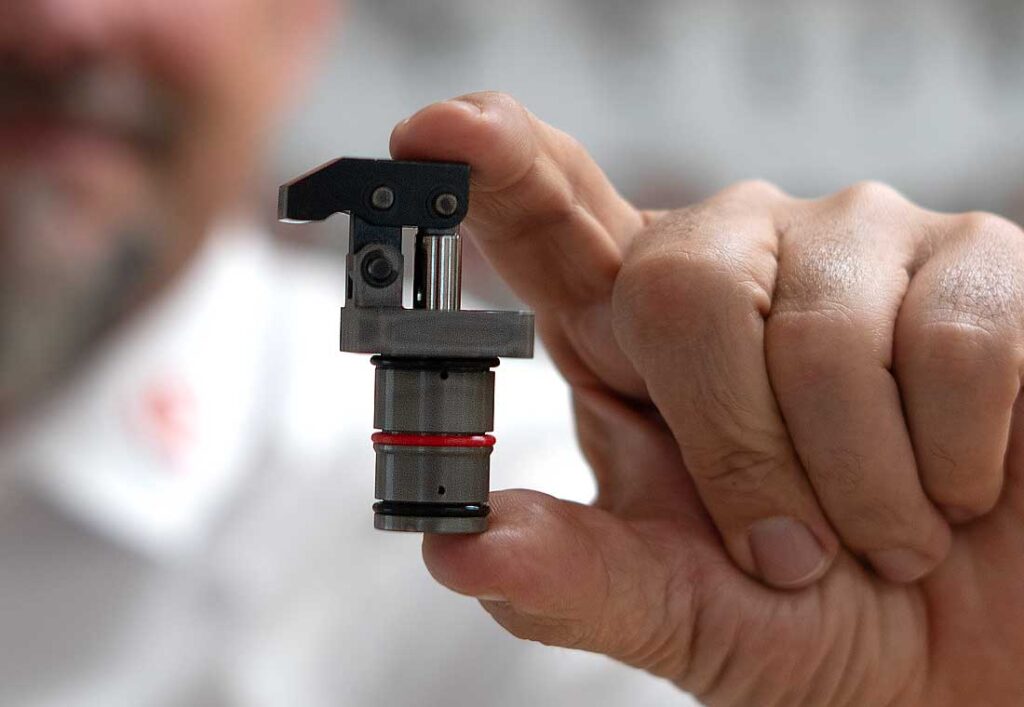

TQA Mid-Pressure Compact Clamp for Space-Saving Fixture Design

The TQA Series has been expanded with two additional model sizes: TQA0300 and TQA0450. With this model extension, KOSMEK’s compact mid-pressure link clamp now offers a wider clamping force range for fixture designs where installation space, fixture weight and process reliability are critical.

Originally introduced with the compact TQA0160 model, the TQA Series is designed for hydraulic double-acting operation in the medium-pressure range from 2 to 21 MPa. The updated lineup now covers body sizes from ⌀20 mm to ⌀29 mm and clamping forces up to 4.2 kN with standard lever, giving fixture designers more flexibility when higher clamping force is required in compact layouts.

Key Benefits of the TQA Series:

• Compact medium-pressure link clamp for space-saving fixture design
• Hydraulic double-acting operation from 2 to 21 MPa
• Expanded lineup with TQA0160, TQA0300 and TQA0450
• Clamping force range up to 4.2 kN with standard lever
• Almost 3x the clamping force compared to the original TQA0160 model
• Slim body design from ⌀20 mm to ⌀29 mm
• Minimum fixture plate thickness from 27 mm, depending on model and configuration
• Optional unclamp confirmation using a pneumatic sensor
• Compact flange and short dimension below flange for thinner, lighter fixtures
• Protective wall and durable dust seal for long service life in machining environments
• Easy cartridge cavity machining with standard tools
• Different sizes can be arranged without changing port height

For applications requiring process confirmation, the TQA-J Unclamp Confirmation Model enables unclamp operation to be confirmed using a pneumatic sensor. This supports higher process reliability in automated machining and fixture applications.

Download the updated TQA catalog for detailed specifications, external dimensions, clamping force curves and circuit examples.
