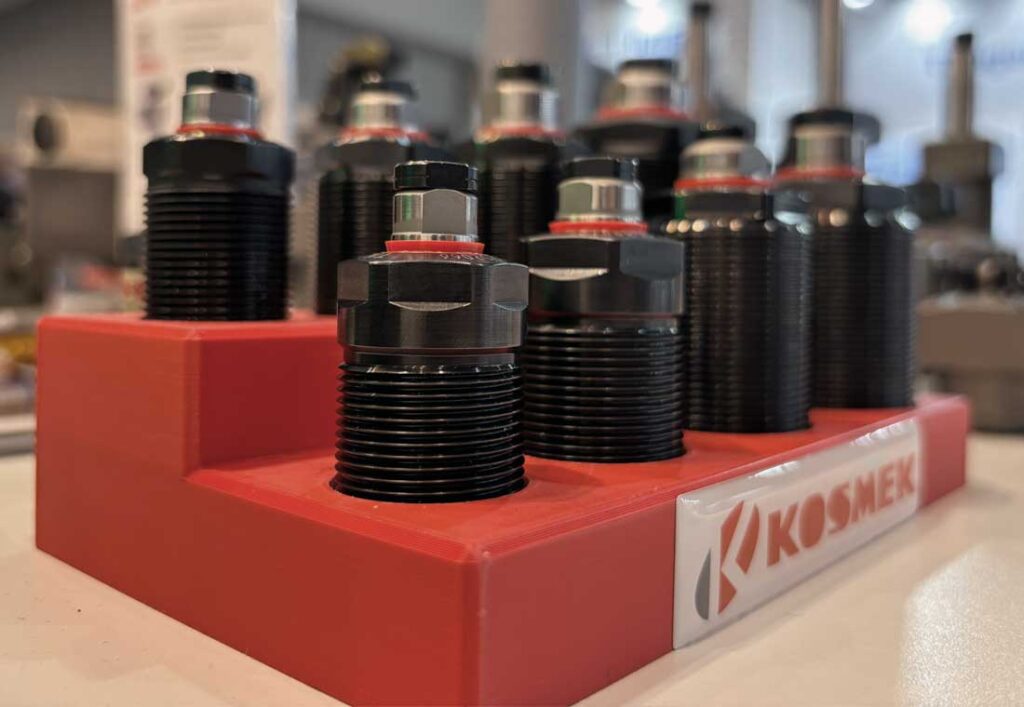

TNE Model for Mid- and High-Pressure Work Support

The TNE Series is the next evolution of KOSMEK’s proven work support technology. Building on the trusted TNC design, TNE offers greater rigidity and significantly higher support force for demanding machining environments.

With the latest catalog update, the TNE lineup has now been expanded with new model variations, including Spring Advance models, Long Stroke models and Air Sensing options. This gives fixture designers greater flexibility when selecting the right work support configuration for compact, high precision and high pressure applications.

Key Benefits of the TNE Series

• Up to 2x the support force compared to TNC
• High rigidity with less displacement for stable machining
• Compact design ideal for high precision and high pressure applications
• Long Stroke models available for applications requiring extended plunger stroke
• Spring Advance models available for workpieces with varying support conditions
• Air Sensing Option available for plunger action confirmation
• Interchangeable with the existing TNC Series for easy upgrades
• Reliable hydraulic locking mechanism for stable workpiece support
• Improved environmental durability with exclusive scraper and knockout function
• Supports stable machining by helping reduce chatter and workpiece deformation

New TNE model variations

• TNE: Hydraulic Advance Model
• TNE-Q: Hydraulic Advance Long Stroke Model
• TNE-E: Spring Advance Model
• TNE-EQ: Spring Advance Long Stroke Model
• TNE-M: Hydraulic Advance Air Sensing Option
• TNE-M-E: Spring Advance Air Sensing Option

For the Air Sensing Option, plunger action can be checked by connecting an air sensor to the air port and detecting differential pressure. This supports reliable confirmation of work support operation in automated machining and fixture applications.

Please Note: Replacements for existing TNC models remain available while stock lasts. Please contact us to place any additional orders.
