No Backlash When Connected
Delivers exact positioning without mechanical looseness.
μm
It eliminates play between components, ensuring precise and stable positioning.
By locking and positioning tools and fixtures without micro-movement, machining accuracy and repeatability are improved.

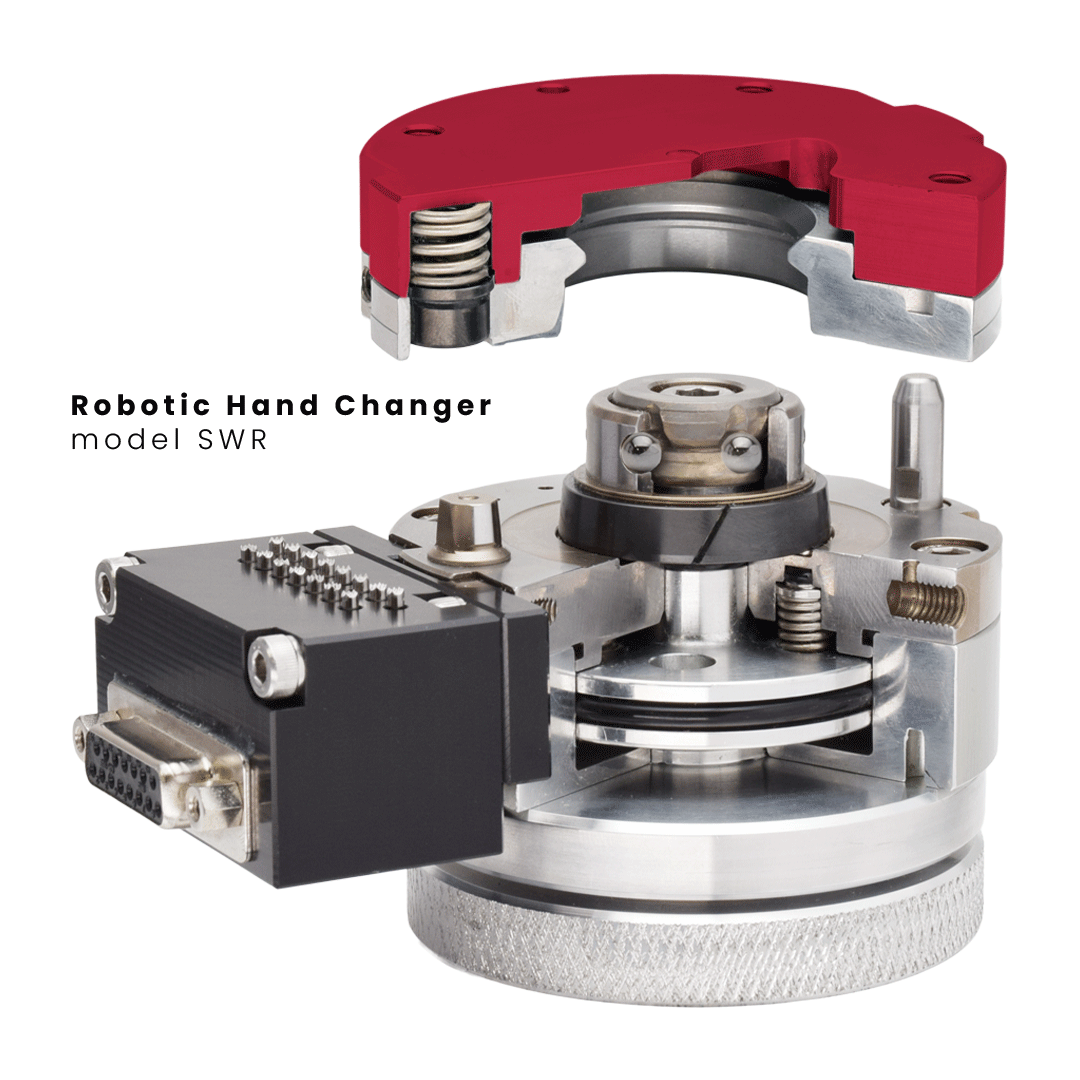

Yes. KOSMEK's Zero-Backlash Technology is patented. As an example KOSMEK offers backlash-free robotic tool changers.
A conventional Zero-Point System holds the workpiece stable in two axes (X, Y), but slight movement can still occur due to manufacturing tolerances. KOSMEK’s Zero-Backlash Technology eliminates this movement completely, ensuring absolute stability in all three axes (X, Y, and Z).

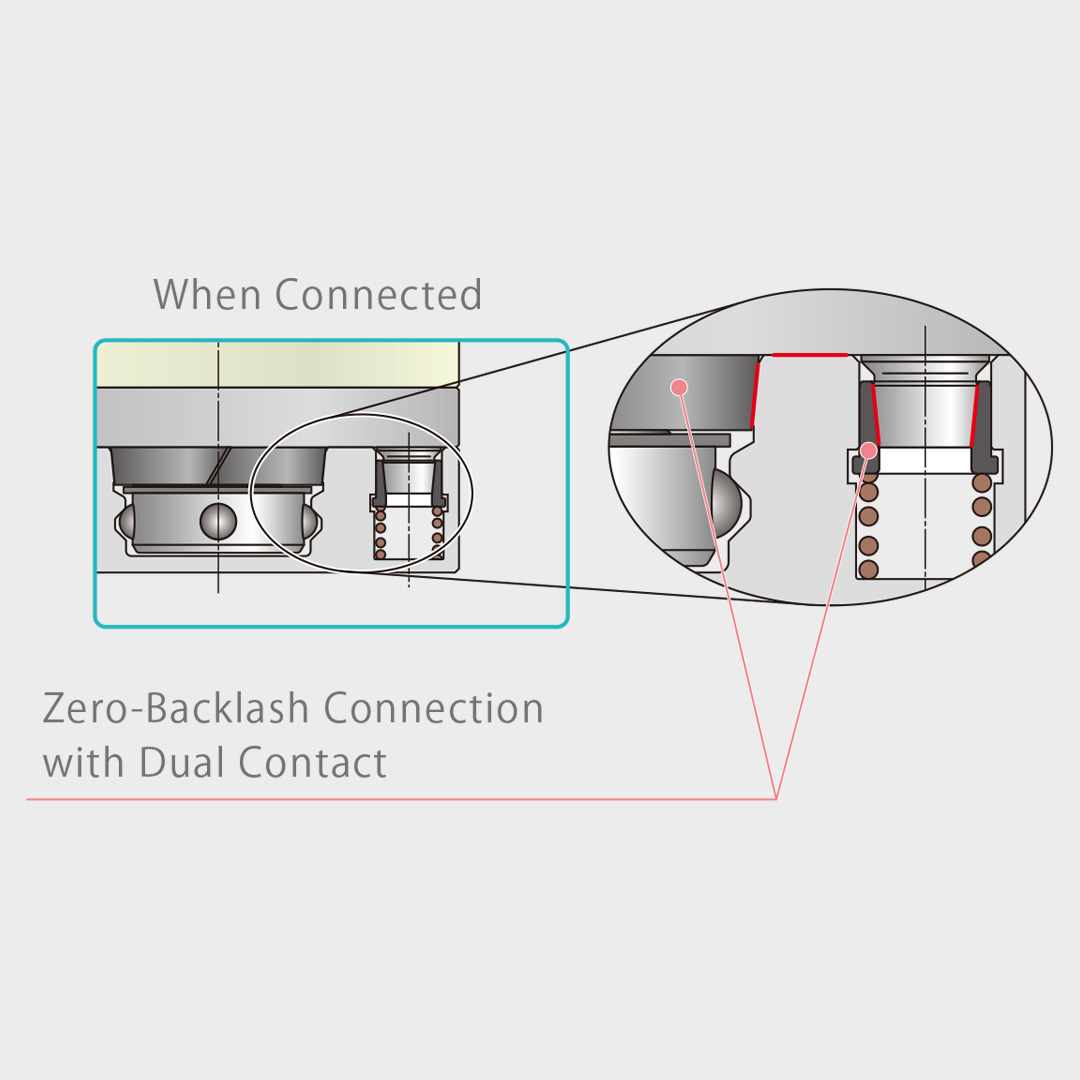

By removing manufacturing tolerances with its patented Zero-Backlash mechanism, KOSMEK achieves full mechanical contact and unmatched positioning accuracy.

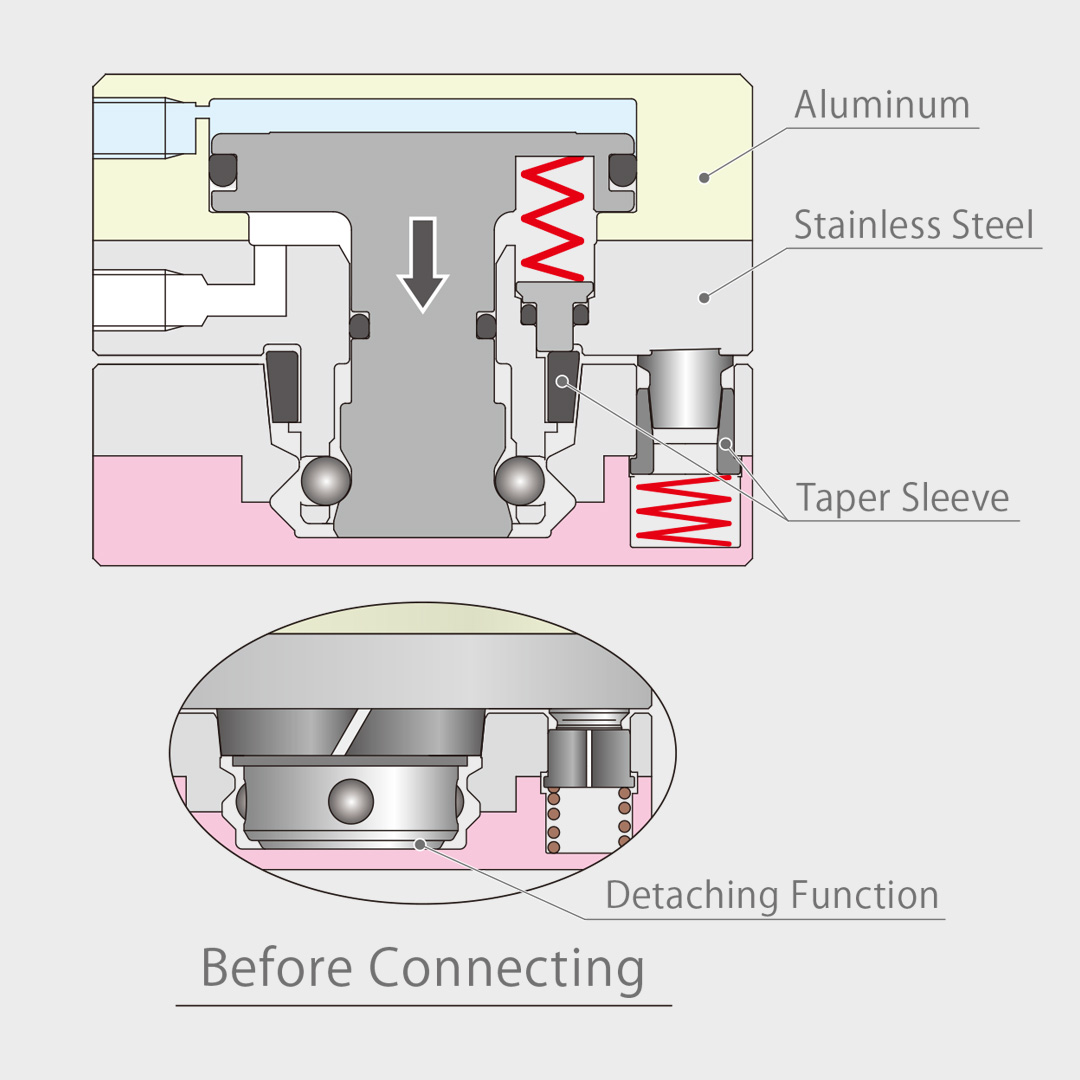

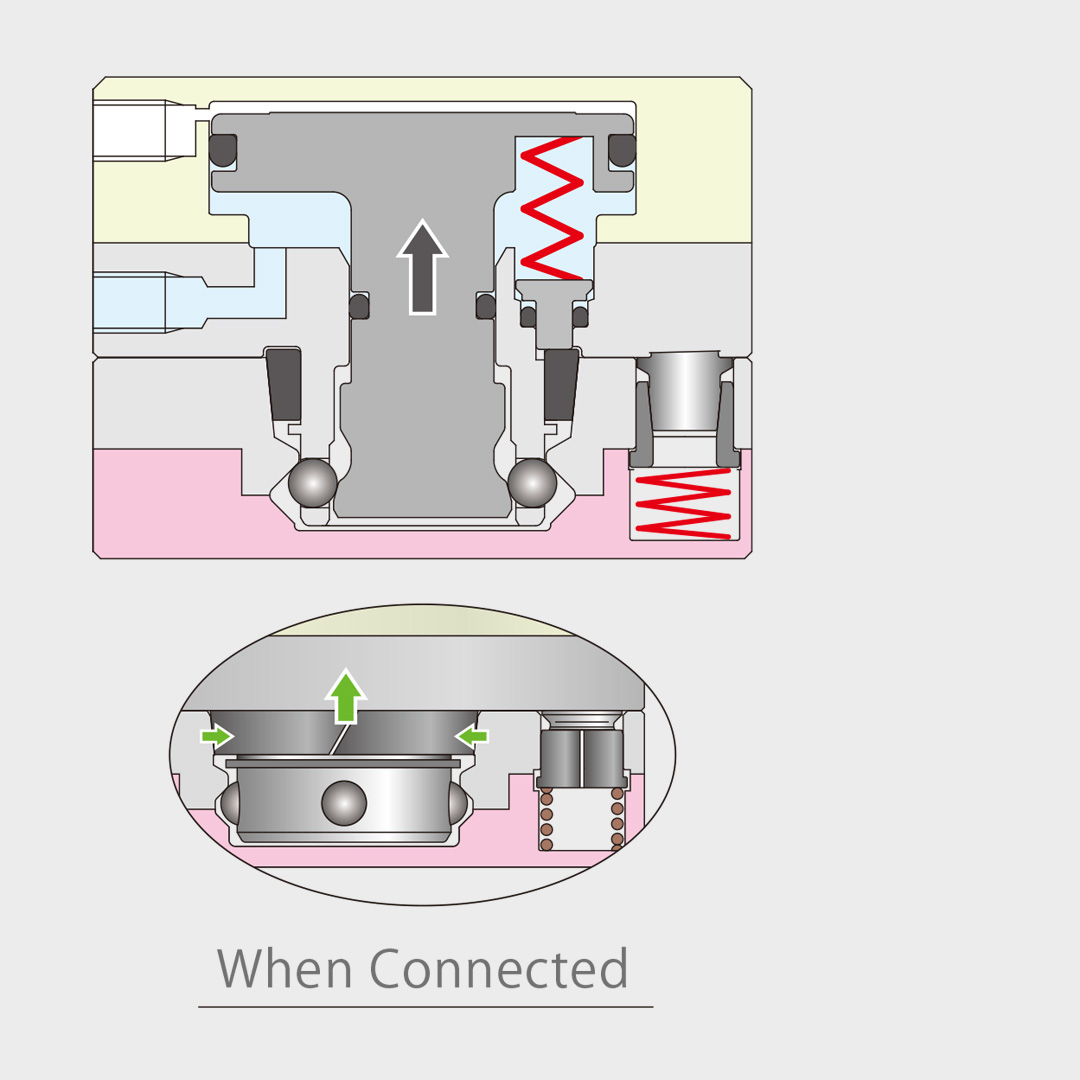

A precision sleeve with taper moves in all directions to achieve complete surface contact with no gap between components.
Even after 2 million cycles, the system maintains a locating repeatability of 3 µm, regardless of the number of hands per robot or wear over time. This results in an exceptionally rigid, backlash-free connection for maximum precision in robotic and high-accuracy machining applications.
Explore more details in our Application Examples Catalog
